Surface Mount 7 PIN Slide Switch

Surface Mount 7 PIN Slide Switch is a kind of structure is relatively simple switch, the interior of sliding switch has a slider, sliding switch can be used at power supply cut off with put on, also can be used at recorder conversion guard, widely used in all kinds of radio, recorder, electronic toy telephone, electronic instrument, daily electrical appliances, household electricity.

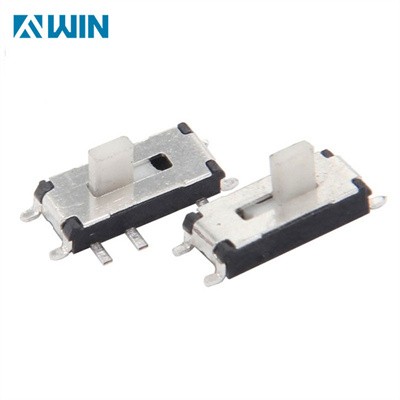

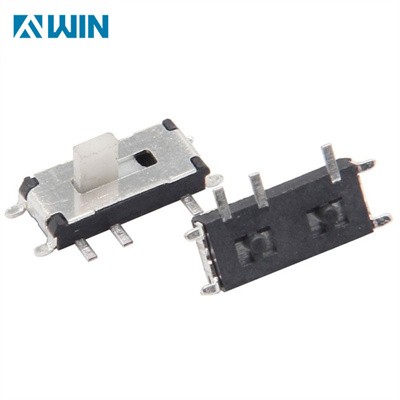

The "Surface Mount 7 Pin Slide Switch" is a compact, surface-mount device (SMD) switch that is designed to be mounted directly onto a printed circuit board (PCB) using surface-mount technology (SMT). With a 7-pin configuration, this switch offers enhanced versatility for controlling multiple circuits or functions within electronic devices. It is commonly used in applications that demand space efficiency, such as consumer electronics, communication devices, and other compact gadgets where precise control and reliability are required.

This switch features a slide mechanism, allowing the user to toggle the actuator between different positions. Typically, the 7-pin design supports multi-pole, multi-throw (MPMT) configurations, meaning it can control multiple circuits or switch between several different states. This makes it useful in complex systems where different circuit paths or modes need to be selected, such as audio equipment, control panels, or switching between power sources.

The surface-mount design is a key feature of this slide switch. Being an SMD component, it is designed to be placed on the surface of a PCB without the need for through-hole soldering, saving space and allowing for more compact and lightweight product designs. It can be integrated using automated assembly methods like pick-and-place machines, making it efficient for mass production.

The 7-pin layout offers flexibility, often used in double-pole, triple-throw (DP3T) or other configurations where multiple circuit connections are required. This allows the switch to control different operational states in a single device, such as switching between different power sources, signal paths, or operational modes. The sliding mechanism is smooth and reliable, with tactile feedback ensuring the user knows when the switch has been successfully toggled.
