What is a Toggle Switch

A toggle switch is a mechanical switch that is operated by flipping a lever or handle back and forth to control an electrical circuit. The toggle action is a simple, yet effective way to either complete or break a circuit, allowing electrical current to flow or stopping it. The design of toggle switches provides a clear visual and tactile indication of whether the switch is in the "on" or "off" position. This makes them widely used in applications where the user needs to easily understand the state of the switch, and where durability and reliability are essential.

Basic Functionality and Mechanism

At its core, a toggle switch is a switch that operates through the movement of a lever (or toggle) that physically moves between two or more positions to control electrical flow. In the "on" position, the switch connects two conductors to complete the circuit, allowing electricity to flow. In the "off" position, the circuit is broken, and the flow of electricity is interrupted. The lever is typically actuated by hand, but in some designs, it can also be operated by foot or automatically.

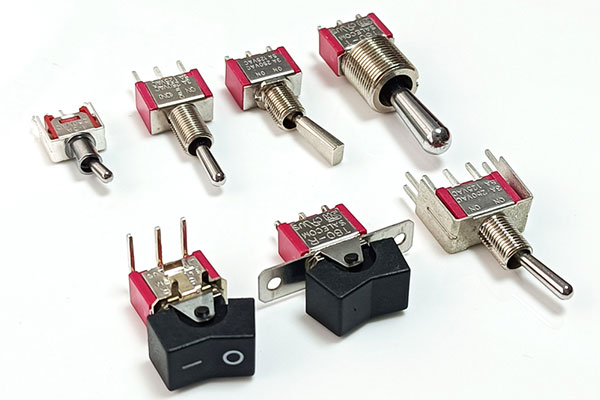

Types of Toggle Switches

There are several types of toggle switches, each designed for different uses and configurations. The most common toggle switch types are:

1. SPST (Single Pole, Single Throw): This is the simplest form of a toggle switch, with one input and one output. It operates as a basic on/off switch, controlling a single circuit by either completing or interrupting it.

2. SPDT (Single Pole, Double Throw): A more versatile version of the SPST switch, the SPDT has one input and two output terminals. This allows the switch to alternate between two different circuits or settings. SPDT switches are commonly used when you need to select between two options, such as switching between different power sources or settings.

3. DPST (Double Pole, Single Throw): The DPST toggle switch has two inputs and one output, allowing it to control two separate circuits simultaneously with a single flip of the switch. This is useful in applications where you need to control two independent circuits, such as turning on both a fan and a light with one switch.

4. DPDT (Double Pole, Double Throw): This switch has two poles and two throws, which means it can control two circuits, each with two possible output positions. This type is used for more complex applications where multiple circuit paths need to be managed simultaneously, such as reversing the direction of a motor or selecting between multiple power sources.

5. Rocker Toggle Switch: While not strictly a "toggle" switch in the traditional sense, a rocker switch uses a similar mechanism to toggle between on/off positions, but with a broader actuator that rocks back and forth rather than flipping. Rocker switches are typically more ergonomic and often used in consumer electronics or automotive systems.

Applications of Toggle Switches

Toggle switches are incredibly versatile and are found in a wide variety of devices and systems. Some common applications include:

• Consumer Electronics: Toggle switches are frequently used in household appliances such as light switches, power strips, and older radios. They provide a simple and effective means to control electrical devices with a clear on/off indication.

• Automotive and Aviation: Toggle switches are commonly used in vehicles, especially in control panels for functions like headlights, ignition, or auxiliary systems. The tactile feedback of a toggle switch makes it easy for drivers to identify the switch’s state without taking their eyes off the road. In aviation, toggle switches are used for critical controls due to their robustness and reliability.

• Industrial Equipment: In factories or heavy machinery, toggle switches are used to control high-voltage or high-current circuits. These switches are often sealed or enclosed to prevent contamination from dust, water, or other environmental factors.

• Audio and Music Equipment: Many audio and musical instruments use toggle switches to select between channels, power states, or other settings. For example, a guitar amplifier may use toggle switches to toggle between different sound modes or power settings.

• Medical Devices: Toggle switches are also found in medical equipment, where reliability and clear feedback are critical. They may be used to control power, adjust settings, or operate critical systems on medical machines.

Advantages of Toggle Switches

1. Clear Visual Feedback: One of the main benefits of toggle switches is that they provide clear visual feedback. The movement of the lever into an "up" or "down" position indicates the switch’s state (on or off), making it easy to identify whether the circuit is open or closed.

2. Durability: Toggle switches are designed for long-lasting use. Many toggle switches are rated to withstand thousands, even millions, of operations, which makes them ideal for applications where reliability is crucial.

3. Tactile Feedback: The physical "click" or "snap" that occurs when a toggle switch is flipped gives users tactile confirmation that the switch has been activated. This feature is particularly valuable in industrial or high-precision applications where users need to confirm that a switch has been properly engaged.

4. Variety of Configurations: Toggle switches come in different configurations (SPST, SPDT, DPST, DPDT) to meet the specific needs of the user, making them highly adaptable to different circuits and systems.

5. Ease of Use: Toggle switches are simple to operate. A flick of the wrist or a push of a button is all it takes to change the state of the switch, which is why they’re commonly used in situations where ease of operation is essential.

Disadvantages of Toggle Switches

While toggle switches offer many advantages, they do have some limitations:

• Size: Depending on the design, toggle switches can take up more space than other types of switches, such as push-button or membrane switches. This can be an issue in applications where space is constrained.

• Mechanical Wear: Although toggle switches are durable, the mechanical parts can wear down over time, especially in environments with high-frequency use or extreme conditions.

• Limited Functionality: Toggle switches are typically best for simple on/off operations or basic multi-circuit switching. For more advanced functionality, such as fine-tuned control or multi-step adjustments, other types of switches may be more appropriate.

A toggle switch is a versatile, reliable, and straightforward switch used to control electrical circuits by flipping a lever or handle. It comes in various types, such as SPST, SPDT, DPST, and DPDT, offering different configurations to suit various applications. From consumer electronics to industrial machinery, toggle switches are valued for their tactile feedback, durability, and ease of use. Despite some limitations, their ability to provide clear status indications and robust performance makes them a staple in many industries and everyday devices.
