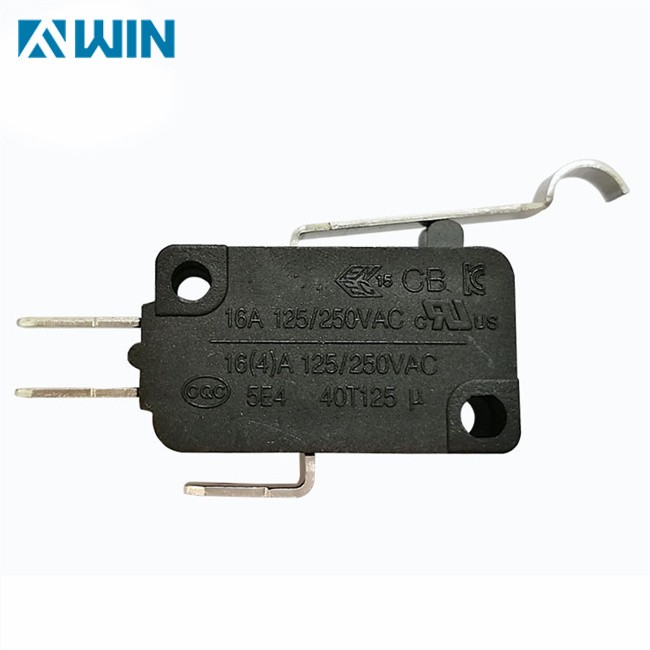

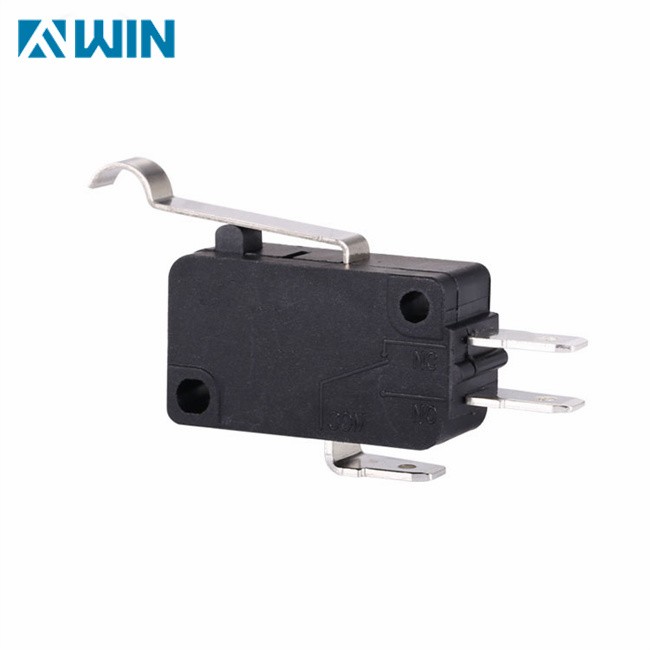

SPDT Miniature Micro Switch with roller lever

Mini Waterproof Micro Snap Switch features small size,long service life and high reliability,variety of terminals options and ,many levers choices.


The SPDT (Single Pole Double Throw) Miniature Micro Switch with a roller lever is a sophisticated electrical component, engineered to offer versatile and accurate control in a compact form.

Distinctive Roller Lever Design

The roller lever on this switch serves a dual purpose. Firstly, it allows for smooth actuation when in contact with moving parts. The rounded roller surface reduces friction, ensuring that even the slightest movement can trigger the switch. This is particularly useful in applications where the actuator has a low - force or rolling motion. Secondly, the lever design provides mechanical advantage, enabling the switch to be activated with minimal effort. This makes it suitable for use in delicate systems where excessive force could cause damage.

Versatile SPDT Functionality

The SPDT configuration of this micro switch is highly versatile. It can connect an electrical circuit to one of two different outputs. This functionality is invaluable in applications that require the selection between two different operating states or power sources. For instance, in a multi - speed fan control system, the switch can direct power to the appropriate motor winding to achieve the desired fan speed. In lighting setups, it can switch between a normal light and a dimmable light source, providing flexibility in illumination options.

Compact and Durable Build

Despite its small size, this switch is built to last. High - quality materials are used in its construction, ensuring that the internal contacts can withstand repeated use. The contacts are designed to minimize electrical arcing, which not only extends the switch's lifespan but also improves its performance. The robust housing protects the internal components from environmental factors such as dust, moisture, and vibrations. This makes it suitable for use in a wide range of environments, from industrial settings to consumer electronics.

Wide - ranging Applications

The applications of this switch are extensive. In automotive systems, it can be used to control functions like the windshield wiper speed selector or the turn signal indicator. In home appliances, it can be found in devices such as toasters, where it switches between different heating elements. In industrial machinery, it may be used to control the direction of a conveyor belt or the activation of a specific tool. Overall, the SPDT Miniature Micro Switch with a roller lever combines compact size, versatile functionality, and durability, making it an ideal choice for applications that demand precise and reliable switching.


-Small Compact Size

- Variety of Actuator and Terminals

- Global Safety Approvals

- Long Life and High Reliability

- Customized Designs

- Widely used in Auto Control, Appliance Control

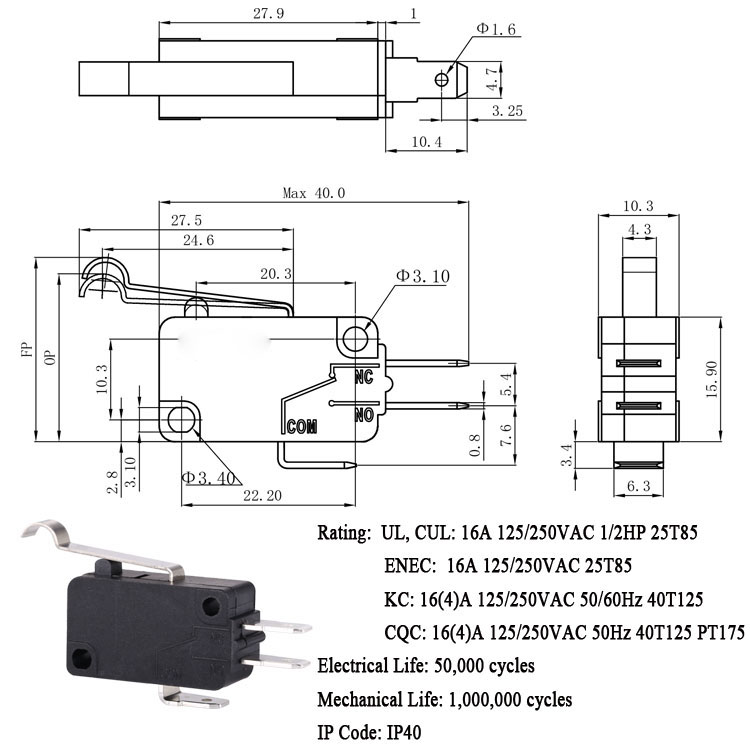

A04-NN1 XQ.jpg
