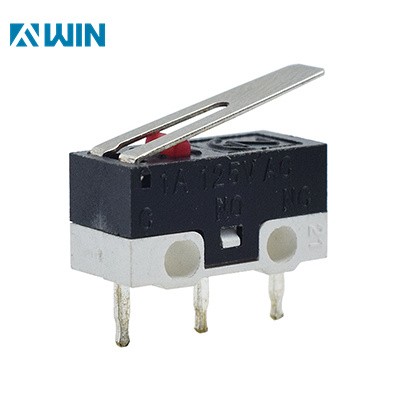

Micro Limit Switch 1A 125VAC

This Subminiature 1A 125VAC PCB micro limit switch with 3 Pin and roller; SPDT Design (1NO+1NC) moment. The actuator form is a medium hinge lever.

The mini micro switch features small size,long service life and high reliability,variety of terminals options and ,many levers choices.

The subminiature 1A 125VAC PCB micro limit switch with 3 - pin and roller is a compact yet highly reliable electrical component designed to meet the demands of various precision - oriented applications. This switch is specifically engineered to fit onto printed circuit boards (PCBs), making it an ideal choice for space - constrained electronic assemblies.

Compact Design for Space - Saving

With its subminiature size, this limit switch occupies minimal space on the PCB. It's perfect for use in devices where every millimeter counts, such as small consumer electronics, medical equipment, and precision - controlled machinery. Despite its small footprint, it doesn't compromise on performance.

Electrical Specifications for Versatile Use

Rated at 1A 125VAC, it can handle a reasonable amount of electrical load. This makes it suitable for a wide range of applications that operate within these voltage and current limits. Whether it's controlling the movement of a small motor in a toy or ensuring the proper positioning of components in a delicate instrument, this switch can be trusted to perform accurately.

3 - Pin Configuration for Easy Installation

The 3 - pin design simplifies the installation process. It allows for straightforward connection to the PCB, reducing the complexity of wiring and soldering. This not only saves time during assembly but also enhances the overall reliability of the electrical connection. The pins are designed to be sturdy and ensure a secure fit, minimizing the risk of loose connections that could lead to intermittent operation or complete failure.

Roller - Actuated for Precise Detection

Equipped with a roller, this micro limit switch offers highly accurate position sensing. The roller is designed to smoothly interact with the object being monitored, whether it's a moving part in a mechanical system or a component that needs to be precisely positioned. The rolling action reduces friction and wear, ensuring long - term reliable operation. This makes it an excellent choice for applications where repeated activation and high - precision detection are required, such as in conveyor systems, automated machinery, and robotics.

In summary, the subminiature 1A 125VAC PCB micro limit switch with 3 - pin and roller is a top - tier choice for applications demanding a compact, reliable, and accurate limit - sensing solution. Its combination of features makes it a versatile component that can enhance the performance and functionality of a wide variety of electronic and mechanical devices.
