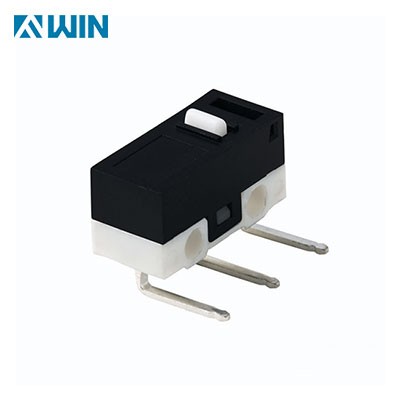

Right Angle Micro Switch

ctors. Inside, there are contact elements, which are responsible for making and breaking the electrical connection when the switch is actuated. A mechanism, often including a spring, is used to ensure quick and accurate switching action. For example, the TL1016 series micro - miniature right angle tactile switches measure just 3.5 mm x 3.55 mm, highlighting their compact nature.

Working Principle

When an external force is applied to the actuator of the right angle miniature micro switch, it causes a mechanical movement. This movement is then transferred to the internal contact elements. Once the force reaches a certain threshold, the contacts change their state, either closing an open circuit or opening a closed one. When the applied force is removed, the spring mechanism within the switch returns the actuator and contacts to their original position, resetting the switch for the next operation.

Key Features

1. Compact Size: Their small dimensions make them suitable for applications where space is restricted, such as in portable electronic devices, medical equipment, and miniature sensors.

2. High Sensitivity: They can detect very small forces or displacements, allowing for precise control and detection in various systems.

3. Long Lifespan: Many right angle miniature micro switches are designed to withstand a large number of switching cycles, ensuring durability and reliability over time. For instance, some models can have an electrical life of up to 3,000,000 cycles.

4. Fast Switching Speed: They can quickly change the electrical state, which is crucial in applications that require rapid response times.

Applications

1. Consumer Electronics: They are commonly used in devices like mobile phones, tablets, digital cameras, and wireless headphones. For example, in mobile phones, they may be used for functions such as power on/off, volume control, or detecting the opening and closing of the device's cover.

2. Automotive Industry: In cars, these switches can be found in door locks, seatbelt sensors, and various control panels. They help in detecting the status of different components and enabling proper functioning of the vehicle's systems.

3. Industrial Control Systems: Right angle miniature micro switches are used in industrial machinery for tasks such as limit sensing, position detection, and safety interlocking. They play a vital role in ensuring the smooth and safe operation of industrial equipment.

4. Medical Devices: Due to their small size and high precision, they are used in medical devices like infusion pumps, diagnostic equipment, and handheld medical monitoring devices.

Selection Considerations

1. Electrical Ratings: It's important to choose a switch with appropriate voltage and current ratings to match the requirements of the circuit it will be used in.

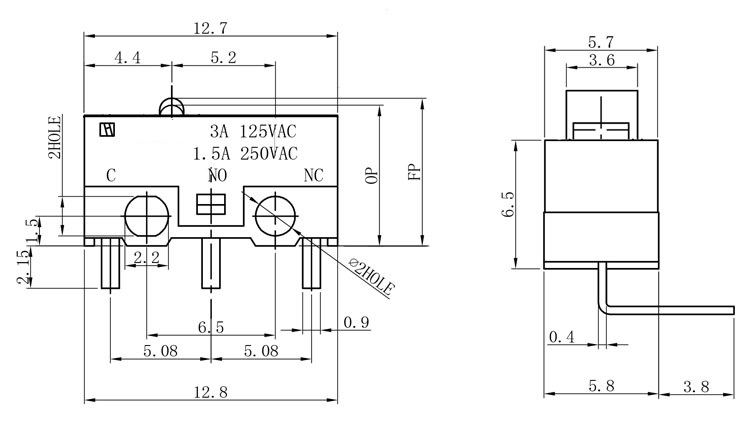

2. Mechanical Specifications: Consider factors such as the operating force required to actuate the switch, the travel distance of the actuator, and the switch's mechanical lifespan.

3. Environmental Conditions: If the switch will be used in harsh environments, look for models with suitable protection against moisture, dust, and temperature variations.

In conclusion, right angle miniature micro switches are versatile and essential components in modern technology, enabling the efficient and reliable operation of a wide variety of devices across different industries.
