LED Tactile Switch

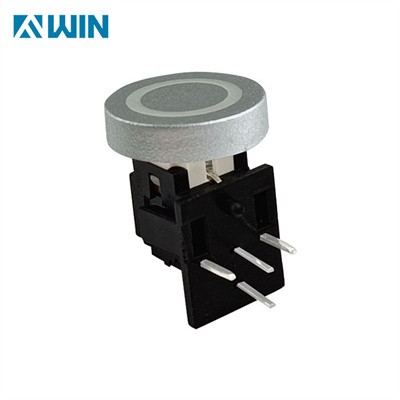

The LED right angle tactile switch with a 10mm silver power cap is an essential component in many electronic applications. This switch combines the benefits of tactile feedback, visual indication, and an aesthetically appealing design, making it a popular choice for various devices, including consumer electronics, industrial equipment, and automotive systems. In this comprehensive guide, we will explore the features, benefits, applications, and important considerations when selecting this type of tactile switch.

A right angle tactile switch is designed to be mounted at a 90-degree angle to the printed circuit board (PCB). This orientation is particularly beneficial in applications where space is limited or when a compact layout is necessary. The tactile switch is characterized by its ability to provide a noticeable click when pressed, allowing users to receive immediate feedback that their action has been registered.

The TS20 series illuminated PCB tactile switch offers right-angle, thru hole termination, and sharp, tactile response and long travel. Blue, red, green ,white ,yellow single LED and bi-color options are available.

The integrated LED indicator enhances the switch's functionality by providing visual feedback about its status. When activated, the LED lights up, offering users a clear indication of whether the device is on or off. The addition of a 10mm silver power cap adds a modern touch, making the switch not only functional but also visually appealing.

The LED right angle tactile switch with a 10mm silver power cap is a versatile and reliable component that significantly enhances user interfaces across a wide range of electronic devices. Its combination of tactile feedback, visual indication, and compact design makes it an ideal choice for various applications, from consumer electronics to industrial control systems.

1. 160gf and 250gf options

2. It can assembled directly on P.C.B Board.

3. Many LED lights are available.

4. 90 degree type and the P.B.C board become 90 degrees when soldered.
