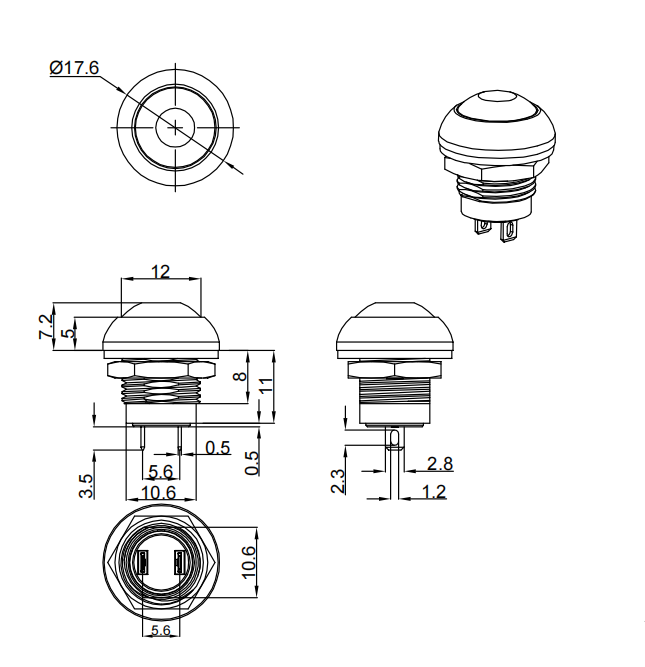

Red Round 12mm Push Button Switch 2 Pin

The PB12 series is ideal for harsh, noisy environments where a sealed push-button with a noticeable "click" is an absolute necessity. The excellent tactile and audible switching behaviour complements the I series.

The Red Round 12mm Push Button Switch (2 Pin) is a compact and versatile component suitable for various applications, from electronics projects to industrial control systems. This recommendation highlights its features, benefits, applications, and considerations to guide potential buyers and designers.

• Compact Design
  The 12mm diameter makes it perfect for applications where space-saving is essential. Its minimalistic profile allows it to be mounted on crowded PCBs or control panels.

• Two-Pin Configuration
  With its straightforward design, the 2-pin setup supports simple circuits, ideal for switching applications without requiring complex connections.

• Momentary Action
  Typically, the switch operates in a momentary mode, meaning it only remains active while being pressed. This feature is perfect for applications such as signal input or temporary circuit control.

• Robust Housing
  The switch's durable construction ensures longevity, even in environments with frequent use. Its sturdy red plastic housing not only enhances visibility but also resists minor abrasions and impacts.

• Aesthetic Appeal
  The bright red actuator provides a distinct look, making it suitable for use in designs where aesthetics and functionality need to be balanced.

The Red Round 12mm Push Button Switch (2 Pin) is a dependable, cost-effective choice for applications requiring compact, momentary tactile input. Its versatility makes it suitable for a wide range of uses, from DIY projects to professional electronics. By selecting this switch, users benefit from a blend of simplicity, reliability, and aesthetic appeal. Proper consideration of the specifications and environmental factors will ensure optimal performance and longevity.

Rating:0.1A /2A;24VAC/125VAC

Contact resistance: 50mΩ（max）

Insulation resistance: DC500V 100MΩ（min）

Dielectric strength: 1000VAC for 1 minute;

Total travel:2.5±0.5mm

Operating force:300±50gf

Operating life: 10,000 cycles

Mechanical life:50,000 cycles Min

Operating temperature:0℃~85℃

1. Multiple button color options

2. Suitable applications for keyboards, security systems, about 5 colors.

3. Panel mount
