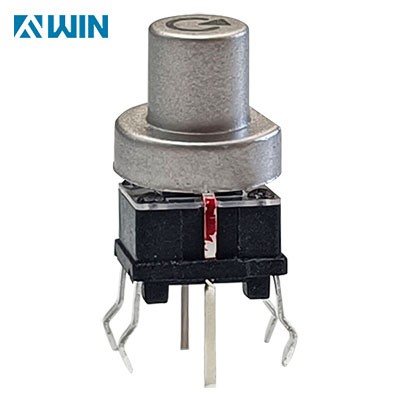

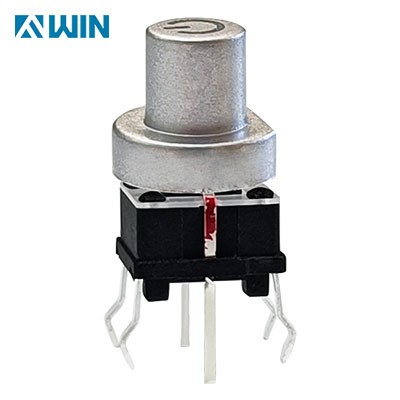

Illuminated Tact Switch With Red LED

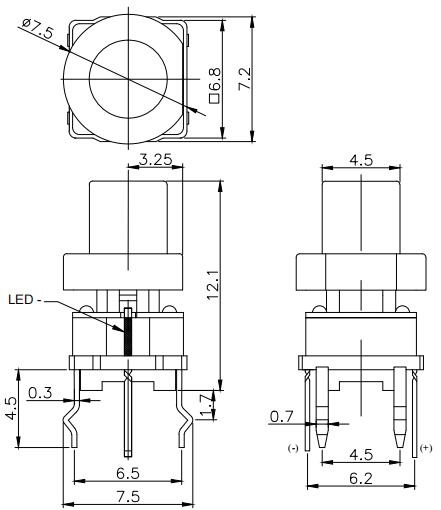

The TS16 series Illuminated Tact Switch With Red LED has choice of six colors :white, red, green, yellow, blue ,orange and more bi-colors, the TS16 series measuring 7.0mm x 7.0mm with 12.1mm profile, caps are available and comes in two diameter: 4.5mm and 7.5mm, the pcb mount illuminated tactile button has an electrical rating of 50mA@12VDC and a 500,000 cycle life expectancy.

The illuminated tact switch with a red LED is a specialized component designed for various electronic applications. This switch combines tactile feedback with integrated LED illumination, specifically using red LEDs to provide clear visual indicators.

The illuminated tact switch with a red LED is an essential component for modern electronic devices, providing both functionality and user-friendly features. Its combination of tactile feedback, integrated illumination, and durable design makes it an ideal choice for applications across various industries, including consumer electronics, automotive, and industrial controls.

The switch features a built-in red LED that lights up when the button is pressed. The red illumination serves as a clear visual indicator of the switch's status, enhancing visibility and user awareness.

1. Mini 7.0x 7.0mm switch size

2. A variety of led colors options

3. Two caps is available
