Integrated LED Tact Switch

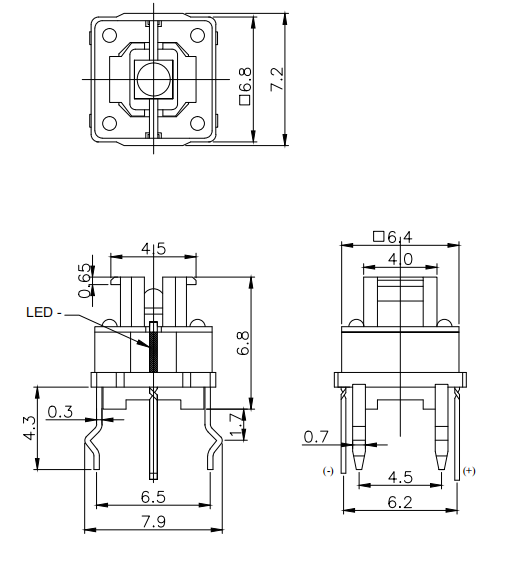

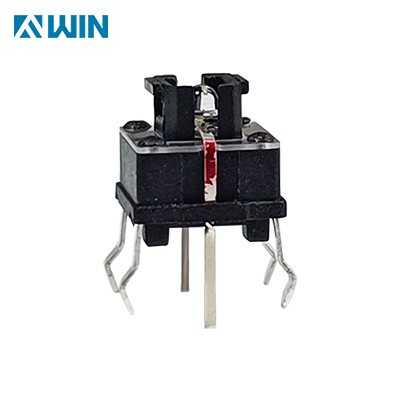

TS16 series illuminated through hole tact switch with embedded LED, it has basic 7.0* 7.0mm size, the led tact button is available with multiple single or bi-color LED colors.

The 7x7mm integrated LED tact switch is a compact and highly functional component widely used in various electronic applications. This switch combines tactile feedback with built-in LED illumination, making it an ideal choice for enhancing user interaction and device functionality. Below, we explore its features, applications, advantages, and key considerations for selection.

The 7x7mm size of this tact switch makes it particularly suitable for space-constrained electronic designs. Its compact footprint allows for efficient use of PCB real estate, accommodating multiple components in tight layouts. The integrated design simplifies the assembly process and reduces the number of required components on the board.

A defining feature of this switch is its built-in LED, which illuminates when the switch is activated. This LED provides immediate visual feedback, enhancing usability, especially in low-light conditions. Users can quickly identify the operational status of the device, improving overall user experience. The tactile feedback, characterized by a distinct click when pressed, confirms the user’s action, ensuring confidence in interaction.

The 7x7mm integrated LED tact switch is a versatile and essential component that significantly enhances user interaction across a wide range of electronic devices. Its combination of tactile feedback, integrated LED illumination, and compact design makes it an ideal choice for applications in consumer electronics, industrial controls, medical devices, and automotive systems.

Compact Size: With dimensions of 7x7mm, this switch is ideal for applications where space is at a premium, such as handheld devices and embedded systems.

Integrated LED Illumination: The LED lights up upon activation, providing visual confirmation and enhancing usability in various environments.

Tactile Feedback: The switch offers a noticeable click when pressed, giving users clear confirmation of their action, which is crucial for precise control applications.

Durable Construction: Designed for high cycle life, these switches can withstand extensive use without significant wear, making them suitable for both consumer and industrial applications.

Easy Integration: The compact design and integrated features allow for straightforward assembly on PCBs, streamlining the manufacturing process.

Customization Options: Available with various LED colors and actuation forces, these switches can be tailored to meet specific design requirements.
