4 Way DIP Switch

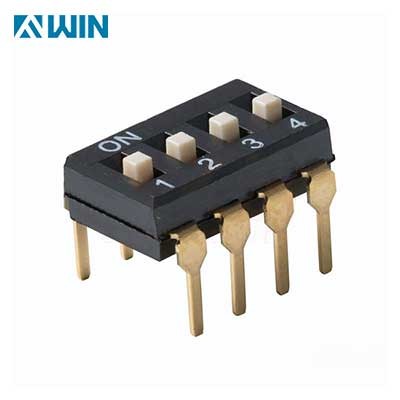

DP Series is 4 Position Dip Switch. This dip switch offers a variety of positions options. Stable quality and popular in configure computer peripherals industry. Besides, it uses PCB terminal for quick connection and easy assemble. Red and blue color are available.Their name comes from having the same shape and array of terminals found in integrated circuits (dual inline package), thus abbreviated to DIP.

The "4 Way DIP Switch" is a small, manually operated switch array that allows users to control multiple electronic circuits with a single component. Comprising four individual switches, each functioning independently, this device is commonly used in applications where settings need to be configured or altered, such as in electronics, communication equipment, and industrial machinery. It’s especially useful for selecting different modes, programming configurations, or addressing multiple devices in a circuit.

Key Features:

1. 4 Independent Switches:

The DIP switch has four separate switches, each capable of being turned ON or OFF independently. This flexibility allows for up to 16 (2^4) different combinations, enabling a variety of control or configuration options within the circuit. Each switch operates as a single-pole, single-throw (SPST) device, making it straightforward to use for both power or signal routing.

2. DIP (Dual In-line Package) Form Factor:

Designed for easy integration into printed circuit boards (PCBs), the DIP switch has a standard in-line pin configuration. It is mounted either directly through holes on a PCB or in a socket for easy replacement. The compact, rectangular form factor ensures that the switch occupies minimal space on the board while offering multiple switch functions.

3. Manual Control:

The switches are operated manually, typically using a small tool or finger. Each switch toggles between two positions: ON (closed circuit) and OFF (open circuit). The clear ON/OFF states make it easy for users to configure settings based on their requirements. This manual control is ideal for applications that require fixed or adjustable configurations, such as in product prototypes, testing environments, or production settings.

4. Durability:

The 4 Way DIP Switch is constructed from durable materials, including plastic housing that provides insulation and protection for the internal contacts. The metal contacts inside the switches are designed to resist corrosion and maintain consistent electrical connections over long periods of use.

5. Low Profile Design:

Its low-profile design ensures that the switch remains unobtrusive on the PCB, making it ideal for use in compact devices and densely packed electronic assemblies. The DIP switch’s small size doesn’t compromise its ability to offer reliable functionality across multiple switching operations.

Rating: 25mA 24VDC

Gap Distance: 2.54mm

Switch Function: OFF-ON

Operating Temperature: -25℃~+70℃

Operating Force: 8N Max

Installation Mode: PCB

Electrical Life: 2.000 Cycles

Posi No: 2,3,4,5,6,7,8,10,12

Contact Resistance: ≤500mΩ

Insulation Resistance: ≥100MΩ

Dielectric Strength: 500VACmin
