On On Mini Toggle Switch

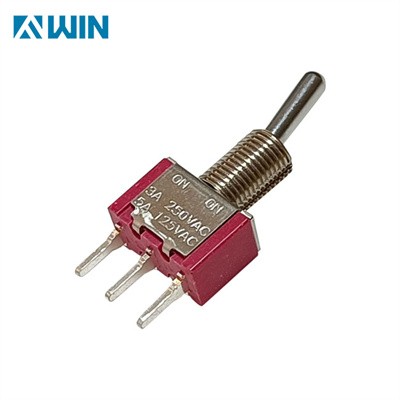

The on-on mini toggle switch is well suited to moderate-duty commercial applications, this miniature toggle switch is a variant of a regular electrical switch it is commonly used for opening and closing electrical circuits. It can be panel mounted and is often used on PCB.

The single pole double throw (SPDT) latching switch features movable contacts made from silver-plated brass, with a brass actuator, diallyl phthalate case and stainless steel housing. The ON-ON two position toggle switch lets the toggle to latch on in either of the ON positions, while the latching mechanism maintains the switch in place.

The ON-ON toggle switch is a popular and versatile switch used in Eurorack and modular synthesizer systems, as well as in various audio equipment. This type of switch allows users to toggle between two ON states, making it ideal for applications that require switching between two active circuit paths or signal routes. In this overview, we’ll explore the functionality, benefits, and applications of the ON-ON toggle switch, particularly in the context of Eurorack, modular synthesizers, and audio systems.

Key Features

1. Two Positions - ON-ON

Position 1 (ON): Activates one connection, sending a signal or power to a specific circuit path or function.

Position 2 (ON): Activates a different connection, directing the signal or power to an alternative path or function.

The ON-ON toggle switch offers two positions, both of which activate a different connection in the circuit. Unlike standard ON-OFF switches, which offer a clear “open” (OFF) state, the ON-ON switch connects two active states, typically allowing for switching between two different paths, settings, or configurations.

2. Compact Design

The ON-ON toggle switch is typically small in size, making it well-suited for the tight, space-conscious design of Eurorack and modular synth setups. Its compact form ensures that it can be easily integrated into systems without taking up excessive space.

3. Durability and Longevity

Often made from high-quality materials such as metal or robust plastics, ON-ON toggle switches are built to withstand frequent use in demanding environments. Whether used in a studio or during live performances, these switches are designed for longevity and reliability.

4. Tactile Feedback

These switches usually offer noticeable tactile feedback with each flip, providing a satisfying “click” when switched between the two ON positions. This tactile response is useful in live performance or studio setups, ensuring that the user can feel the switch’s activation and be confident in the state of the system.

5. PCB Mounting

The ON-ON toggle switch is often designed for PCB (printed circuit board) mounting, making it easy to integrate into Eurorack or modular synth modules. It typically features through-hole or surface-mount terminals that can be soldered onto a PCB.

Applications in Eurorack / Modular Synthesizers

1. Signal Path Switching

One of the most common uses for the ON-ON toggle switch in a modular synth setup is for signal path switching. By toggling between two active paths, users can select different sound sources or modulation signals, allowing for more dynamic control over their synthesis process.

For example, an ON-ON toggle might be used to switch between two different waveforms generated by oscillators, enabling the user to create a more complex or evolving soundscape with minimal effort.

2. Effect Switching

The ON-ON switch is also ideal for activating or routing effects in modular setups. It could toggle between two different effect modules, for example, one path with a distortion module and another with a delay. This allows users to quickly experiment with and apply different effects in their sound design process.

3. Modulation Switching

In modular synth systems, modulation is often routed through various sources, such as LFOs (Low-Frequency Oscillators) or envelopes. The ON-ON toggle switch can be used to switch between different modulation sources, allowing the user to control which modulation path is active at any given time.

4. Triggering Functions

Another application is for triggering functions. The ON-ON toggle can switch between two trigger settings, such as switching between different pulse rates for a clock or enabling different trigger modes in sequencers or drum modules.

5. User Customization

The versatility of the ON-ON switch makes it ideal for custom user setups. It can be used to select between various user-defined parameters, such as different filter cutoff settings, waveform types, or filter resonance values. This gives sound designers and modular synth enthusiasts total flexibility in shaping their sound.

• Latching toggle switch and SPDT contact configuration,PCB type terminal

• Chromium-plated brass actuator and Silver-plated brass contact material

• Panel mount,Panel cut out diameter of 6.35 mm

• Actuator length of 10.41 mm
