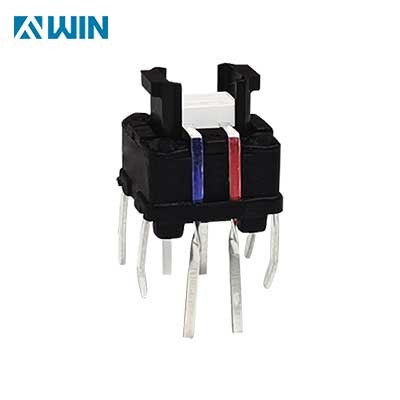

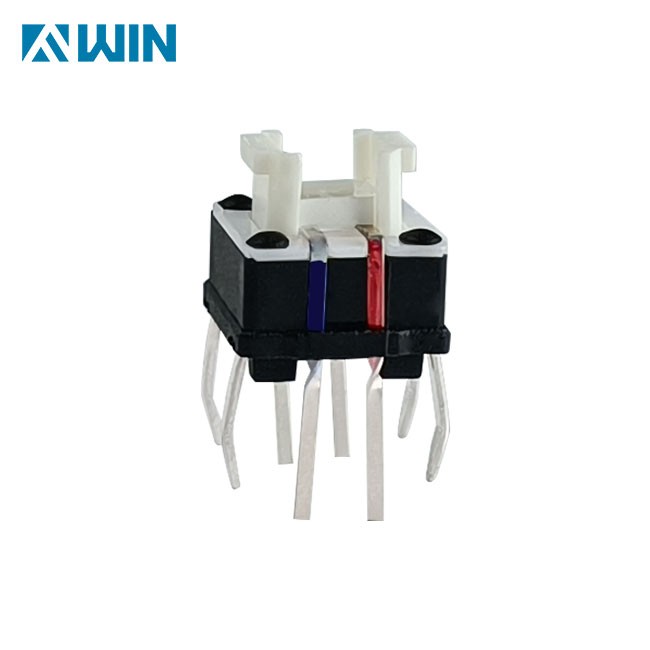

7*7 RGB LED Tact Switch

This is our TS7 series thru-in illuminated tactile switch with red-blue bi-color LED illumination, it consists of common cathode LED lead, it is four pins, and four pins tact switch body, the LED light can be through into the hole of LED lead, then twist it, it is called as led-illuminated tact button, the DIP type is suit for wave soldering.

The 7x7mm RGB LED illuminated Tact Switch is a versatile and compact electronic component that integrates the functionality of a tactile switch with the illuminating capabilities of RGB LEDs. In this comprehensive guide, we will explore the features, functionality, applications, and advantages of the 7x7mm RGB LED Tact Switch.

Compact Size: The 7x7mm form factor makes it suitable for applications where space is limited.

Tactile Switch: It features a momentary tactile switch mechanism that provides tactile feedback upon actuation, enhancing user experience.

RGB LED Integration: The switch incorporates RGB LEDs, allowing for customizable illumination in various colors, including red, green, blue, and combinations thereof.

Multiple Operating Modes: The RGB LED can be programmed to operate in different modes, such as static color, color cycling, and pulse effects, providing versatility in lighting design.

The RGB Illuminated Through - Hole LED Tact Switch is a remarkable component in the electronics domain. It utilizes an RGB LED system, enabling the emission of a vast array of colors. This feature allows for extensive customization, catering to diverse design concepts and functional needs. In a home entertainment system, for instance, blue might signify input source selection, red could indicate power standby, and green represent active audio output. This color - coding simplifies user interaction and adds a touch of visual elegance.

Featuring a through - hole installation design, it offers distinct advantages. Through - hole mounting provides a more robust connection compared to some other methods. This makes it suitable for applications where stability is key, like in industrial control panels that endure vibrations and harsh environments. The process of through - hole installation is also relatively straightforward, facilitating easy integration into circuit boards. It's a great option for DIY electronics enthusiasts and professional manufacturers alike.

In terms of operation, this tact switch excels in providing tactile feedback. When pressed, users can clearly sense the activation, ensuring accurate and responsive control. Whether it's being used to navigate menus in a digital signage system or for triggering functions in a remote - controlled device, the RGB illuminated through - hole LED tact switch combines functionality, reliability, and visual appeal in one compact package.

1. Mini 7.0*7.0mm dimension

2. Tri-color or red-green / red-blue / red-white dual color LED illumination options

3. Surface mount and through into terminal options

HK FVWIN Industrial Company is a leading manufacturer in high quality electronics switches,sockets.our products application scope including electronic equipment, computer peripheral, tele-communication, home appliance, medical equipment, industrial equipment, pro AV etc; Our product covers Illuminated LED tact switches,Illuminated push switches,push button switches, toggle switches and AC socket are all with certified quality approval.

FVWIN meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
