TS4 SPST Round Momentary Key Tactile Switch

FVWIN TS4 Series Round Tactile (Key/Push Button) Switch PCB Mount

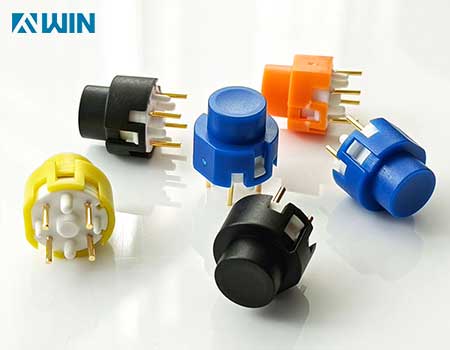

TS4 series round PCB mount push button/key switch with a SPST configuration and momentary action,it has 11.5mm outline diameter, the actuator button is 8mm diameter, the SPST NO keypad switch uses the gold plated lead pin to maintain the high quality reliability when you push it on the circuit; the button color can be custom-made by your requirement; on the bottom of base, it has four positioning pin that keep the assemble stable when you insert it onto the PCB board.

The momentary tactile button has typical applications include, video/electronic games and small appliances,Video & Vision, Industrial.

The Red Snap Action PCB Button Switch is a reliable, space-efficient, and quick-response component used in a variety of electronic and electrical systems. Its snap-action mechanism ensures fast, definitive operation, while its red color typically signals importance or urgency, making it ideal for critical functions like emergency stops or alerts. These switches are an essential part of many industrial, consumer, and safety applications where clear and immediate action is required, and their compact design makes them especially useful in space-constrained environments. With their combination of tactile feedback, durability, and reliable operation, red snap-action PCB button switches are a crucial component in modern electronics.

Features/Benefits:

Easy X,Y coding on single side PCB,it is convenient for PCB mounting, when you press it, there has positive tactile feedback, the gold plated terminal assure the high reliability and promise the operation life, the momentary key push button’s housing color is available in red, white, blue, black and green, if you want to customized it, we also support it.

Here are the key benefits and features of a Red Snap Action PCB Button Switch:

• Quick Response: The snap-action design ensures a rapid, reliable response when the switch is pressed, making it ideal for time-sensitive operations.

• Tactile Feedback: The user can feel the action of the switch as it engages, which adds a layer of reassurance that the button press has been registered correctly.

• Durability: These switches are designed to withstand many cycles of operation, making them highly reliable for long-term use.

• Compactness: As a PCB-mount switch, it takes up less space and can be part of more compact designs, which is particularly valuable in electronic devices or systems with dense layouts.

• Low Actuation Force: Snap-action switches typically have a relatively low actuation force, meaning they require less pressure to press and activate, which can be an advantage in devices requiring frequent user interaction.

Product Specification:

Part No:	TS4-2X	Mounting type:	PCB
Actuator Length:	4.2 mm	Type:	SPST Momentary, Push to Make
Actuator Diameter:	8 mm	Height:	10.5 mm
Outside Diameter:	11.5 mm	Row Spacing:	5.2 mm
Terminal Pitch:	5.2 mm	Travel:	0.7+/-0.2mm
Actuation force:	200+/-50gf
