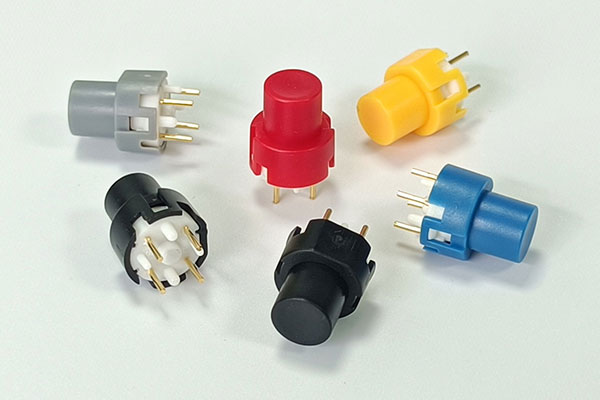

TS4 Series Top Actuated Tactile Switch

The TS4-3R by FVWIN Components is a tactile switch from the TS4 Series. It is top actuated, meaning the switch is activated by pressing down on the top of the switch. This type of switch is commonly used in various electronic devices for user input due to its reliability and tactile feedback. The TS4 series red tact switch is used in Music Thing Modular Radio Music and Chord Organ.

Key Specifications

1. Operating Force: 1.3 N
2. Current Rating: 100 mA
3. Voltage Rating DC: 32 V
4. Power Rating: 3 VA
5. Contact Form: SPST
6. Switch Function: OFF – (ON)
7. Termination Style: Solder Pin
8. Mounting Style: Through Hole
9. Mounting Direction: Vertical
10. Height: 12.8 mm
11. Length: 12 mm
12. Button Diameter: 9 mm
13. Base Diameter: 12 mm

Applications

• Consumer Electronics: Ideal for remote controls, gaming controllers, and other handheld devices.

• Industrial Controls: Suitable for use in control panels and machinery interfaces.

• Medical Devices: Reliable operation makes it suitable for medical equipment interfaces.

• Module Synthesizers: Used for triggering sounds, navigating menus, and adjusting parameters.

Installation Tips

1. Soldering: Ensure proper soldering techniques to secure the switch to the PCB. Avoid excessive heat which can damage the switch.

2. Placement: Position the switch where it is easily accessible for user interaction.

3. Testing: After installation, test the switch to ensure it provides the desired tactile feedback and functions correctly.

The TS4 tactile switch by FVWIN Components is a reliable, durable, and compact component suitable for a wide range of electronic applications. Its top actuation, tactile feedback, and robust design make it an excellent choice for both consumer and industrial devices. Ensure proper installation and testing to achieve optimal performance in your application.
